CC3235SM2RGKR 有现货 可添加我们联系方式获取最优惠价格
原厂原包原标原装每一片都来自正规渠道每一片都可追溯

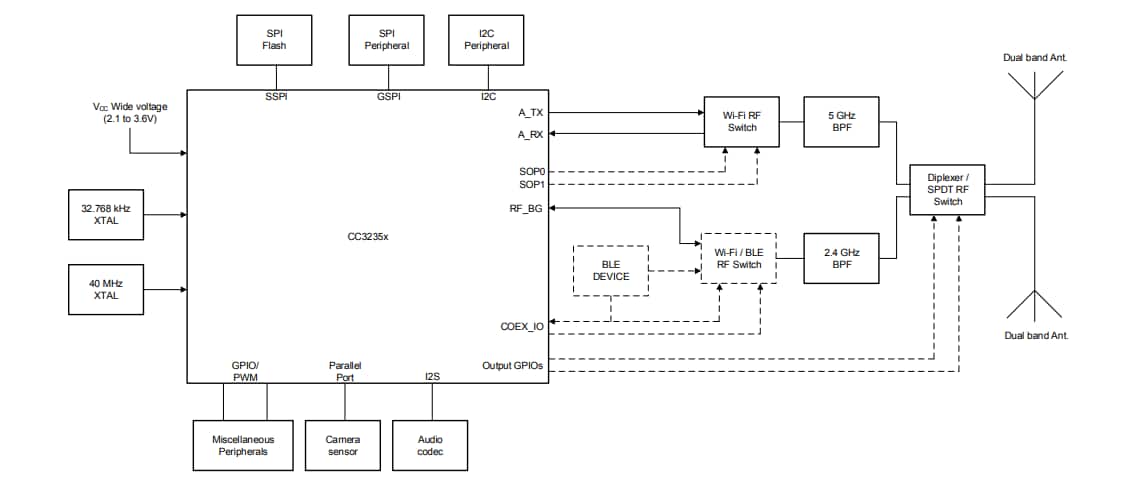

Texas Instruments CC3235x SimpleLink™ Wi-Fi®, Dual-Band Single-chip Wireless MCU Solution integrates two processors within a single chip and comes in two variants, the CC3235S, and CC3235SF. The CC3235S incorporates 256KB of RAM, IoT networking security, and device identity/keys. The CC3235S additionally offers MCU level security features such as file system encryption, user IP (MCU image) encryption, secure boot and debug security. The CC3235SF builds on the CC3235S and integrates a user-dedicated 1MB of executable flash in addition to the 256KB of RAM.
The CC3235x SimpleLink™ Series provides a network processor to run all Wi-Fi and internet logical layers. The ROM-based subsystem completely offloads the host MCU and includes an 802.11a/b/g/n dual-band 2.4GHz and 5GHz radio, baseband, and MAC with a powerful hardware cryptography engine. The CC3235x devices feature new capabilities simplifying the connectivity of IoT applications. These features include 802.11a (5GHz) support, BLE/2.4GHz radio coexistence, antenna selection, enhanced security with FIPS 140-2 Level 1 certification, up to 16 concurrent secure sockets, and a certificate sign request (CSR).+
Multiple-core architecture, system-on-chip (SoC)
802.11 a/b/g/n: 2.4GHz and 5GHz
FIPS 140-2 Level 1 Certification
Multilayered security features, help developers protect identities, data, and software IP
Low-Power Modes for battery powered application
Coexistence with 2.4GHz Radios
Industrial temperature: –40°C to +85°C
Wi-Fi CERTIFIED™ by the Wi-Fi Alliance®
Application microcontroller subsystem:
Arm® Cortex®-M4 core at 80MHz
User-dedicated memory
256KB RAM
Optional 1MB executable Flash
Rich set of peripherals and timers
27 I/O pins with flexible multiplexing options
UART, I2S, I2C, SPI, SD, ADC, 8-bit parallel interface
Timers and PWM
Wi-Fi network processor subsystem:
Wi-Fi® core:
802.11 a/b/g/n 2.4GHz and 5GHz
Modes:
Access Point (AP)
Station (STA)
Wi-Fi Direct® (only supported on 2.4GHz)
Security:
WEP
WPA™/WPA2™ PSK
WPA2 Enterprise
Internet and application protocols:
HTTPs server, mDNS, DNS-SD, DHCP
IPv4 and IPv6 TCP/IP stack
16 BSD sockets (fully secured TLS v1.2 and SSL 3.0)
Built-in power management subsystem:
Configurable low-power profiles (always, intermittent, tag)
Advanced low-power modes
Integrated DC/DC regulators
Multilayered security features:
Separate execution environments
Networking security
Device identity and key
Hardware accelerator cryptographic engines (AES, DES, SHA/MD5, CRC)
Application-level security (encryption, authentication, access control)
Initial secure programming
Software tamper detection
Secure boot
Certificate signing request (CSR)
Unique per device key pair
Application throughput:
UDP: 16 Mbps, TCP: 13Mbps
Peak: 72Mbps
Power-Management Subsystem:
Integrated DC/DC converters support a wide range of supply voltage:
VBAT wide-voltage mode: 2.1V to 3.6V
VIO is always tied with VBAT
Advanced low-power modes:
Shutdown: 1µA, hibernate: 4.5µA
Low-power deep sleep (LPDS): 120µA
Idle connected (MCU in LPDS): 710µA
RX traffic (MCU active): 59mA
TX traffic (MCU active): 223mA
Wi-Fi TX power:
2.4GHz: 18.0dBm at 1 DSSS
5GHz: 18.1dBm at 6 OFDM
Wi-Fi RX sensitivity:
2.4GHz: –96dBm at 1 DSSS
5GHz: –92dBm at 6 OFDM
Clock source:
40.0MHz crystal with internal oscillator
32.768kHz crystal or external RTC
RGK package
64-Pin, 9mm × 9mm very thin quad flat nonleaded (VQFN) package, 0.5mm pitch
Device supports SimpleLink™ MCU Platform Developer’s Ecosystem
Internet of Things
Building and Home Automation:
HVAC Systems & Thermostat
Video Surveillance, Video Doorbells, and Low-Power Camera
Building Security Systems & E-locks
Appliances
Asset Tracking
Factory Automation
Medical and Healthcare
Grid Infrastructure
CC3235SM2RGKR 制造商: Texas Instruments
产品种类: 射频微控制器 - MCU
核心: Arm Cortex M4
工作频率: 2.4 GHz, 5 GHz
数据总线宽度: 32 bit
数据 RAM 大小: 256 kB
最大时钟频率: 80 MHz
工作电源电压: 3.3 V
最大工作温度: + 85 C
封装 / 箱体: VQFN-64
安装风格: SMD/SMT
封装: Cut Tape
封装: Reel
系列: CC3235
商标: Texas Instruments
数据 Ram 类型: RAM
接口类型: I2C, I2S, SPI, UART
最小工作温度: - 40 C
产品类型: RF Microcontrollers - MCU
工厂包装数量: 2500
子类别: Wireless & RF Integrated Circuits
电源电压-最大: 3.6 V
电源电压-最小: 2.1 V
商标名: SimpleLink
