iBASE Technology AMI220 High Performance Fanless System is a rugged, compact computer system supporting the 7th/6th generation Intel® Core™ i7/i5/i3 Desktop Processors. The AMI220 is designed for industrial-grade solutions in smart factory automation and retail applications.
The fanless and cable-free AMI220 is built with an efficient passive finned heat sink and an industrial-grade motherboard, offering a rich I/O interface and a power supply with over-voltage, low voltage and anti-plug protection. The AMI220 comes with modular expansion slots to accommodate diverse PCI-E, PCI or Fieldbus cards, which can be arbitrarily changed to increase system assembly flexibility and create the ideal solution according to customer specification needs. The AMI220 is based on the Intel® Q170 and the H110 chipsets and powered by Intel® Core processors with speeds up to 3.4GHz. The platform features 8GB of DDR4-2133 system memory expandable to 32GB, triple independent displays via its DVI/VGA/DP interface, and 2x Gigabit LAN with option to add a third GbE.
The rugged AMI220 System is suitable for demanding applications in harsh environments. It has an operating temperature range of -10°C to 50°C with enhanced passive cooling for maximum thermal performance. It also supports 12V to 24V wide-range voltage input and a cableless design for added durability and reliability. The redundant dual SIM sockets provide a more reliable WWAN connection for critical applications.
System Mainboard:
MB220AF with Intel® Q170 PCH
MB220EF with Intel® H110 PCH
CPU Type: 7th/6th generation Intel® Core™ i7/i5/i3 Desktop processors
System Speed: Up to 3.4GHz
Memory: 2x 2GB DDR4-2133 SO-DIMM, Max. 32GB
Construction: Aluminum & steel
Chassis Color: Sliver & Gray (Aluminum)
Front Panel External I/O:
1x DVI-D + 1x VGA
1x Audio jack for MIC-in / Line-out
4x USB 2.0 ports
1x red HDD LED
1x power button with green LED indicator
1x CFast socket, 2x Sim card slot
1x 2-pins terminal block for external power button
Rear Panel External I/O:
1x RS232/RS422/485 port for COM#1
3x RS232 port for COM#2/COM#3/COM#4
2x DisplayPort connector
1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports
1x RJ45 Gigabit Ethernet port + 2x USB 3.0 ports
1x 3 pins DC-in terminal block type for 12V~24V
2x Antenna hole
Expansion Slots: 2x Mini PCI-E sockets + 1x CFast slot
Storage:
1x 2.5 SSD
2x mSATA (AMI220AF only)
1x mSATA (AMI220EF only)
Mounting: Desktop or wall mount (wall mount kit included)
Weight: 3.6kg

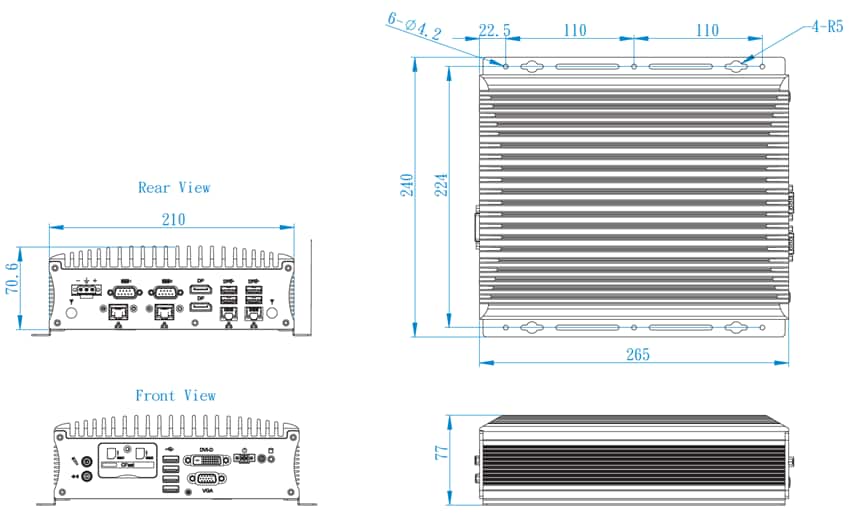

Dimensions:
210mm (W) x 265mm (D) x 77mm (H)
8.27” (W) x 10.43” (D) x 3.03” (H)
Operating Temperature:
-10°C to 70°C (14°F to 158°F) *With Air flow
-10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C ~ 80°C (-4°F~176°F)
Relative Humidity: 5% to 90% @ 45°C, (non-condensing)
Vibration:
Non-Operating: 1.0grms / 5Hz to 500Hz / random operation
Operatiing: 0.25grms / 5Hz to 500Hz / random operation
Certification: CE / LVD / FCC Class B
AMI220AF-4L-7500 AMI220AF-4L-7700 制造商: IBASE
产品种类: 嵌入式箱式电脑
产品类型: Embedded Box Computers
处理器品牌: Intel
处理器类型: Intel Core i5
芯片组: Q170
频率: 2.7 GHz
存储容量: 4 GB
接口类型: Serial
工作电源电压: 12 V to 24 V
最小工作温度: - 10 C
最大工作温度: + 70 C
尺寸: 210 mm x 265 mm x 77 mm
存储类型: DDR4
功耗: 35 W
系列: AMI220AF-4L
商标: IBASE
高速缓冲存储器: 6 MB
HTS Code: 8471500150
处理器系列: 7500T
工厂包装数量: 1
子类别: Computing
AMI220AF-4L-7500
AMI220AF-4L-7700
