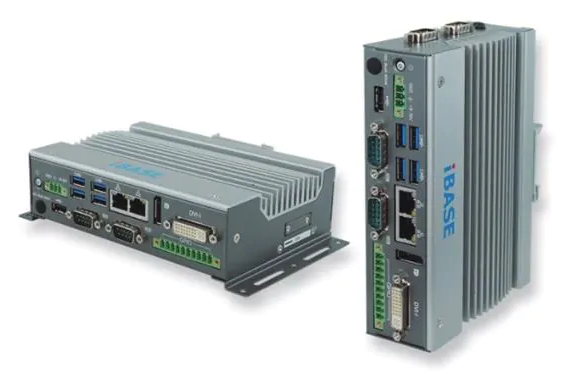

iBASE Technology AGS102 Fanless IoT Gateway System is an Intel® Apollo Lake-based, rail-mountable system designed for industrial control and factory automation applications. The AGS102 can be used as an IoT gateway platform to connect devices and securely transfer data to clouds, or as a Machine-to-Machine (M2M) gateway, providing interconnection of wired or wireless devices to enhance workflow in various industrial environments.
The AGS102 can be powered by Intel® Atom™ processor E3950/E3930 with extended operating temperature (-40°C to 70°C), Intel® Pentium® N4200, and Celeron® N3350 processors (-20°C to 60°C). The AGS102 Gateway supports 4GB DDR3L-1866 DO-DIMM, a 64GB MLC industrial-grade mSATA SSD, dual display ports (DVI-I and DisplayPort), 4x USB 3.0, 2x GbE, 2x COM, a DC-in terminal block for 9V to 36V input, and over/under/reverse voltage protection.
The rugged aluminum and steel chassis of the AGS102 enhances heat dissipation and features easy expansion with a full-size Mini PCI-E socket, a 2230 M.2 E-Key socket for WLAN and Bluetooth, a 3042 M.2 B-Key socket for WWAN & SSD, an mSATA socket (Mini PCI-E), and a 2242 M.2 B-Key socket for mSATA SSD. Aside from a wide-operating temperature range, it supports shock and vibration tolerance standards (IEC 60068-2-64 / MIL-STD-810G), the durability needed to withstand harsh environments. Measuring 160mm (W) x 110mm (D) x 44mm (H), the AGS102 Gateway comes with both DIN-rail and wall mounting kits.
The AGS102 has additional two RS232 ports for COM3/COM4 and GPIO 4-in & 4-out multi-purpose interface for a variety of one- or two-wired devices for I/O, security and data storage purposes
System Mainboard: IB801
CPU Type:
Intel® Atom™ x7-E3950/x5-E3930 & Pentium® N4200
Celeron® N3350 Series processors
System Speed: Up to 2.5GHz
Memory: 1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB
Construction: Aluminum & Steel
Chassis Color: Silver (Aluminum)
Rear Panel External I/O:
1x DVI-I + 1x DisplayPort connector
4x USB 3.0 ports, 1x USB 2.0 port
2x RJ45 Gigabit Ethernet port
3x LED indicators (HDD, WLAN, WWAN)
1x power button with Green LED
1x 3-pins DC-in terminal block type for 9V-36V
1x Antenna hole for WLAN module
2x RS232 ports for COM#3/COM#4
1x 4-in & 4-out GPIO with isolation
Left Panel External I/O:
2x RS232/422/485 ports for COM#1/COM#2
1x Antenna hole for WLAN module
1x Speaker-out connector
Right Panel External I/O:
1x SIM card slot
Expansion Slots:
1x Full size Mini PCI-E socket (USB 2.0 + PCI-E + SATA)
1x 2230 M.2 E-Key socket for WLAN & BT (USB 2.0 + PCI-E)
1x 3042 M.2 B-Key socket for WWAN & SSD (USB 2.0 + SATA)
Storage:
1x mSATA socket (Mini-PCI-E)
1x 2242 M.2 B-Key socket for mSATA SSD
Mounting:
DIN-rail mounting (DIN-rail mount kit included)
Desktop or wall mounting (wall mount kit included)
Weight: 1kg

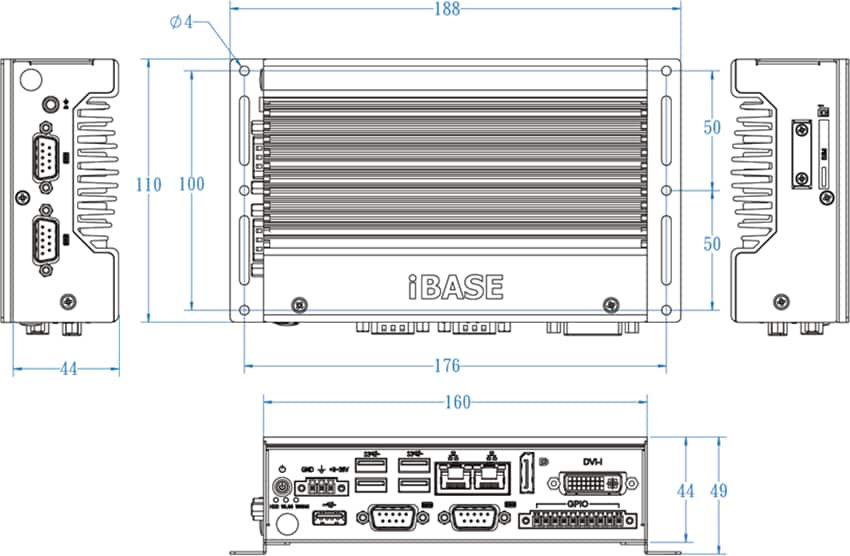

Dimensions:
160mm (W) x 110mm (D) x 44mm (H)
6.3" (W) x 4.33" (D) x 1.73" (H)
Operating Temperature:
-40°C to 70°C (-40°F to 158°F) (For E-series CPU)
-20°C to 60°C (-4°F to 140°F) (For N-series CPU)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 90% @ 45°C, (non-condensing)
Vibration:
Operatiing: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
Non-Operating: 3.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
Shock:
Operating: 30G/11ms Duration (with MIL-STD-810G)
Non-operating : 40G/11ms Duration (with MIL-STD-810G)
Certification: CE / LVD / FCC Class B
AGS102-335 AGS102-420 制造商: IBASE
产品种类: 网络模块
产品: Gateway
处理器类型: Intel Celeron
频率: 2.4 GHz
端口数量: 2 Ethernet, 2 Serial, 5 USB
接口类型: Ethernet, Serial, USB
工作电源电压: 9 V to 36 V
最大工作温度: + 70 C
尺寸: 160 mm x 110 mm x 44 mm
存储类型: DDR3L
随机存取存储器: 4 GB
系列: AGS102
商标: IBASE
HTS Code: 8471500150
最小工作温度: - 40 C
产品类型: Networking Modules
工厂包装数量: 1
子类别: Ethernet & Communication Modules
AGS102-335
AGS102-420
