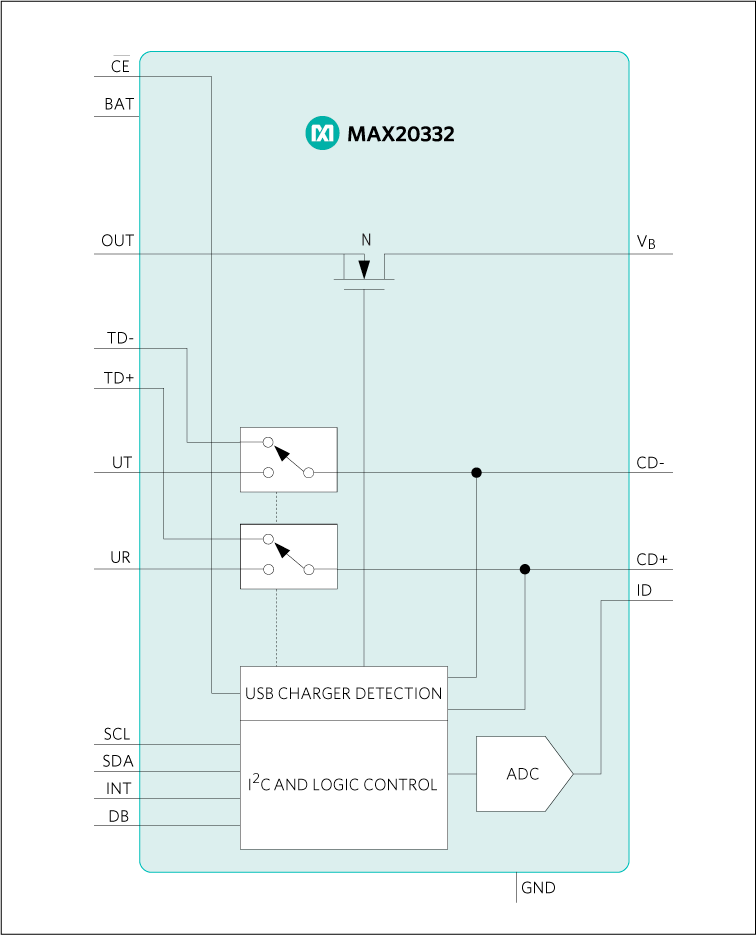

The MAX20332 is a USB charger detector compliant with USB Battery Charging Specification Revision 1.2. The USB charger detection circuitry detects USB standard downstream ports (SDPs), USB charging downstream ports (CDPs), or dedicated charger ports (DCPs), and controls an external lithium-ion (Li+) battery charger.
The device implements USB Battery Charging Specification Revision 1.2-compliant detection logic. The device also includes Apple® charger
detection that allows identification of resistor-divider networks on D+/D-.
The internal double-pole double-throw (DPDT) USB switch is compliant to Hi-Speed USB, full-speed USB, low-speed USB, and UART signals. The device’s internal switch features low on-resistance, low on-resistance flatness, and very low capacitance. The ID pin controls the DPDT switch position. The MAX20332 features high-ESD protection up to ±15kV Human Body Model (HBM)on CD+, CD-, and ID pins.
The MAX20332 is available in a 16-bump, 0.4mm pitch, 1.8mm x 1.9mm wafer-level package (WLP) and operates over the -40°C to +85°C extended temperature range
Key Features
Consumes Less Power
Low Battery Standby Current 5μA (typ)
Delivers USB Compliance and Flexibility
Compliant to USB Battery Charging Specification Revision 1.2
Data Contact Detection for Foolproof Connector Insertion Detection
Dedicated Charger Detection
Standard Downstream Port Detection
Charging Downstream Port Detection
Apple Charger Detection
Facilitates System Design
Integrated Precision 1.5A Overvoltage Protection (OVP)
Negative Audio Capable DPDT Hi-Speed USB Switches
Automatic Switch and Charger Interface Control
Full Control by I2C Interface
Interrupt for Device Status Change
Saves Board Space
VBUS Connection Capable of 36V
±15kV HBM ESD Protection
1.8mm x 1.9mm WLP Package
MAX20332
Applications/Uses
DSCs and Camcorders
e-Readers
Smartphones
Tablet PCs
The MAX20332 evaluation kit (EV kit) is a fully assembled and tested PCB that evaluates the MAX20332 USB charger detection with integrated overvoltage protector. The EV kit features a Pmod™ connector, allowing the USB2PMB2 adapter board to provide I2C interface.
The EV kit features an on-board LDO to generate a supply voltage from the USB +5V. The on-board LDO output is configurable for 4.2V, 3.3V, or 2.3V to power the IC.
The EV kit software controls the USB2PMB2 adapter board over the USB, which generates I2C commands.
关键特性
USB-Powered Operation
Proven High-Speed USB PCB Layout
Pmod I2C Interface
USB Connectors for Device Multiplexing
Surface-Mount Components
Fully Assembled and Tested
MAX20332EVKIT
应用
DSC和便携式摄像机
电子书
智能电话
平板PC
