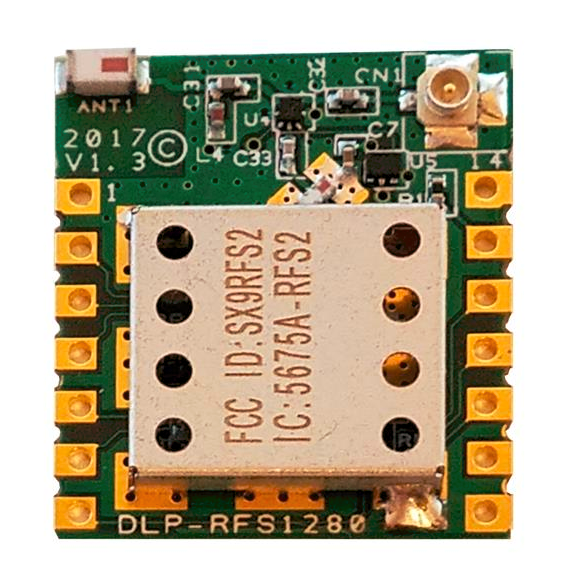

DLP Design DLP-RFS1280 LoRaTM RF Transceiver Module
DLP Design's DLP-RFS1280 LoRa RF Transceiver Module is designed for use in applications that require maximum link budget in the 2.4GHz frequency range. The DLP-RFS1280 is a low-cost module that includes an onboard antenna and operates from a single power supply. This module features the Semtech SX1280 low-power, LoRa-enabled device with ranging (distance-measurement) capability. It features an onboard chip antenna and U.FL connector for an external antenna. Typical applications include high-value asset location and tracking, real-time security, industrial monitoring and control and body-worn medical telemetry.
DLP Design DLP-RFS1280 LoRa RF Transceiver Module
Order Now View Product Details Datasheet More About DLP Design
DLP Design DLP-RFS1280 LoRa RF Transceiver Module
Order DLP Design DLP-RFS1280 LoRa RF Transceiver Module View Product Details
Associated Tool
DLP-RFS1280ACT Demonstration Platform
DLP Design DLP-RFS1280 LoRaTM RF Transceiver Module
DLP Design's DLP-RFS1280 LoRa RF Transceiver Module is designed for use in applications that require maximum link budget in the 2.4GHz frequency range. The DLP-RFS1280 is a low-cost module that includes an onboard antenna and operates from a single power supply. This module features the Semtech SX1280 low-power, LoRa-enabled device with ranging (distance-measurement) capability. It features an onboard chip antenna and U.FL connector for an external antenna. Typical applications include high-value asset location and tracking, real-time security, industrial monitoring and control and body-worn medical telemetry.
Features
2.40GHz to 2.48GHz Operation
+11.5dBm Output Power
4+ Mile Range with On-Board Chip Antenna (Line of Sight)
U.FL Antenna Connector for External Antenna
LoRa, GFSK, and FLRC Modulation Modes
FCC, IC and RED Modular Approvals in Place
3.3V Single Power Supply
Development Kit Available
C Demonstration Source Code Available
Specifications
1.8V to 3.7V Power Supply
SPI Communications Interface
24mA TX Current at +11.5dBm
<5.5mA RX Current
1µA in Deep Sleep Mode
0ºC to 70ºC Operating Temperature Range
Applications
High-Value Asset Location/Tracking
Long-Range Data Communication
Real-Time Security
Body-Worn Medical Telemetry
Home Automation
Industrial Monitoring and Control
Battery-Powered Sensor Networks
DLP-RFS1280制造商: DLP Design
产品种类: 射频模块
产品: RF Modules
频率: 2.4 GHz
输出功率: 11.5 dBm
接口类型: SPI
工作电源电压: 1.8 V to 3.7 V
传输供电电流: 24 mA
接收供电电流: 4.8 mA to 5.6 mA
最大工作温度: + 70 C
尺寸: 0.8 in x 0.92 in x 0.135 in
系列: DLP-RFS1280
商标: DLP Design
天线连接器类型: U.FL
最小工作温度: 0 C
产品类型: RF Modules
工厂包装数量: 1
子类别: Wireless & RF Modules
DLP-RFS1280
